Specification of Square Ratchet Crimper

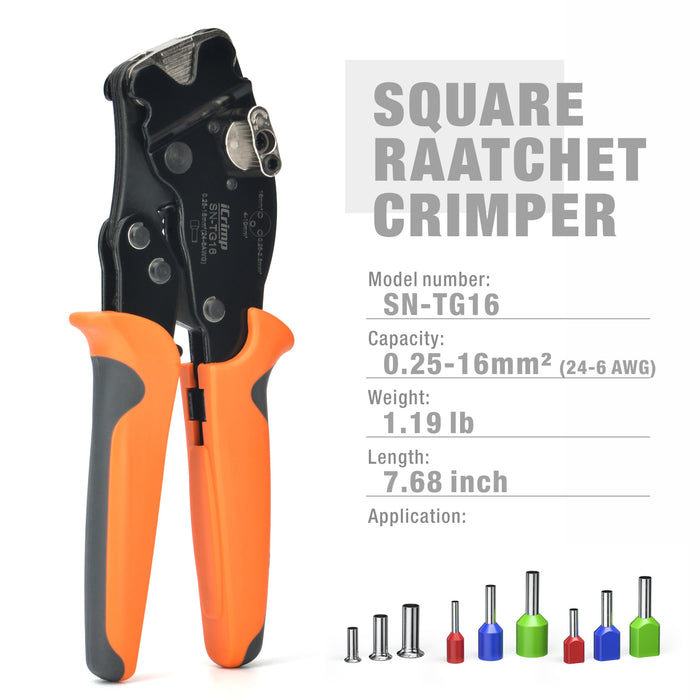

SN-TG16 Square Ratchet Crimper for End Sleeves and Ferrules 0.25-16mm2 AWG 24-6

$21.99 - $21.99
Retail Price $21.99
$21.99 - $21.99
Retail Price $21.99

Click here to buy retail

  • End Sleeve Crimper: SN-TG16 ratchet self-adjusting square crimping plier is designed to crimp AWG24 to AWG6(0.08mm²to 16mm²) wire end ferrules, making fast and solder-free electrical connections.
  • Capacity: Optimised crimping range from 0.08-16mm²(AWG24 -6). Crimps uninsulated end terminals, pre-insulated end sleeves and twin-end ferrules.
  • Front Entry Crimping Tool: Frontal insertion of wire end ferrules into tool, beneficial with short conductor ends. Very helpful under difficult working conditions in confined spaces for crimping end sleeves.
  • Square Crimping: Four lateral crimp profile with four serrated crimp surfaces. Encapsulated crimp eliminates stray wire breakage. Square crimping for optimum contact areas in the clamp connection.
  • Advantages: Repetitive, high crimping quality due to integral lock (self-releasing mechanism). Crimping pressure has been set precisely (calibrated) in the factory, re-adjustable. Optimum transmission of force due to toggle lever action for fatigue-reduced operation.

  • Founded in 2008 with production lines for cable and pipe tools
  • 85 global patents for designs and inventions
  • Various products with thousands of positive reviews
  • Best seller in electrical and piping industry
  • More than 12 overseas warehouses across the world
  • Implementing ISO 9001:2015 quality management system and 100% quality control inspection throughout production
  • Over 1.5 million end users employ iCrimp tools as their handy partner
  • Continuous market research in automotive, electrical, electronics and HVAC industries to pursue persistent innovation
  • Designed to conform to DIN, MIL, JIS, ASTM standards
