ET-01 Deutsch Insertion & Extraction Tools, Contact Extraction, Contact-to-Housing, Wedgelock Removal Tool for DT, DTM, DTP-Series

ET-01 Deutsch Insertion & Extraction Tools, Contact Extraction, Contact-to-Housing, Wedgelock Removal Tool for DT, DTM, DTP-Series

$6.99 - $6.99
Retail Price $6.99
$6.99 - $6.99
Retail Price $6.99

Click here to buy retail

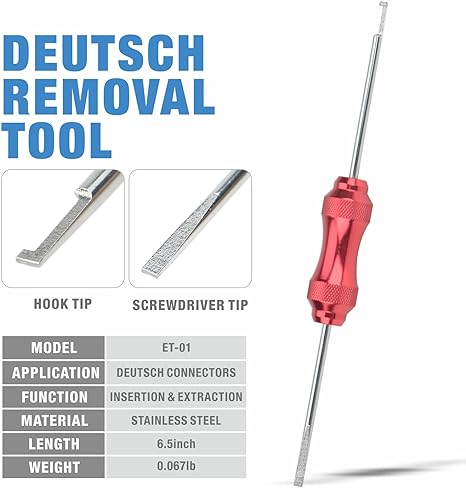

  • The ET-01 removal tool is designed to be used to remove individual Deutsch size 16 solid and stamped and formed pins and socket contacts from front-release connectors (such as DT, DTM, DTP, DTV, DRB, DRCP, and STRIKE* connectors).

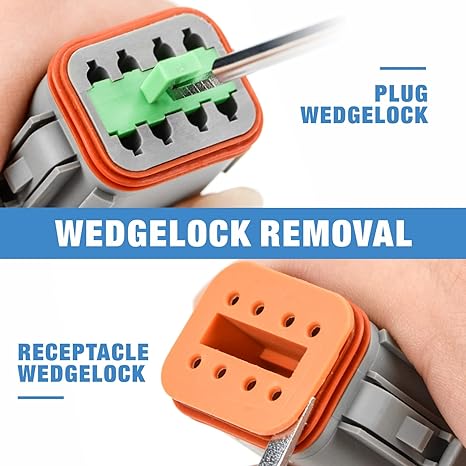

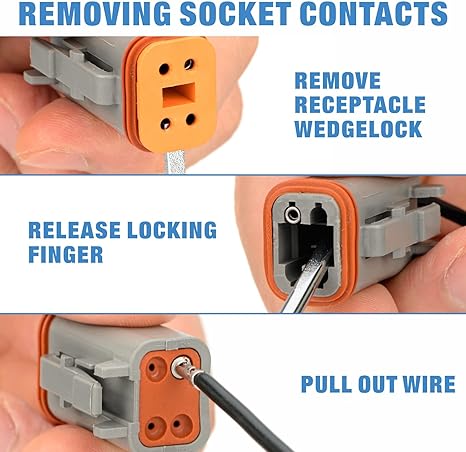

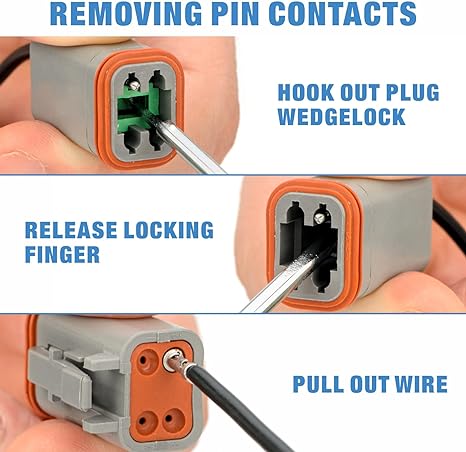

  • Configuration: Multi-use tool with a small hook on one end to remove the wedgelock, and a small screwdriver on the other end to push back the locking fingers and release the contact.
  • Material: Hardened & rust-proof stainless steel body, super handy terminal removal tool for replace or repair worn electrical connections , to let you separate the wires from their terminals without causing damage to either.

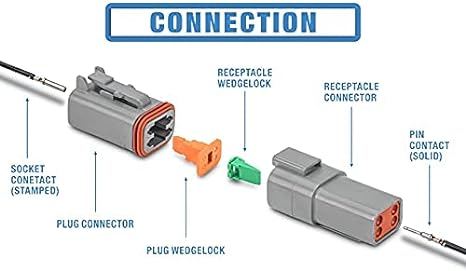

  • Deutsch’s DT Series connectors offer field proven reliability and rugged quality. The DT design strengths include optional flange mounting, multi-pin arrangements, rectangular, thermoplastic housing and integrated latch for mating. The DT Series kit features various plugs and receptacles for 2, 3, 4, 6, 8 and 12 cavity arrangements with contact size 16 (13 amps), as well as wedgelocks to assure contact alignment and retention.
  • An alternative for the Deutsch extraction-removal tool DT-RT1.

  • Founded in 2008 with production lines for cable and pipe tools
  • 85 global patents for designs and inventions
  • Various products with thousands of positive reviews
  • Best seller in electrical and piping industry
  • More than 12 overseas warehouses across the world
  • Implementing ISO 9001:2015 quality management system and 100% quality control inspection throughout production
  • Over 1.5 million end users employ iCrimp tools as their handy partner
  • Continuous market research in automotive, electrical, electronics and HVAC industries to pursue persistent innovation
  • Designed to conform to DIN, MIL, JIS, ASTM standards
